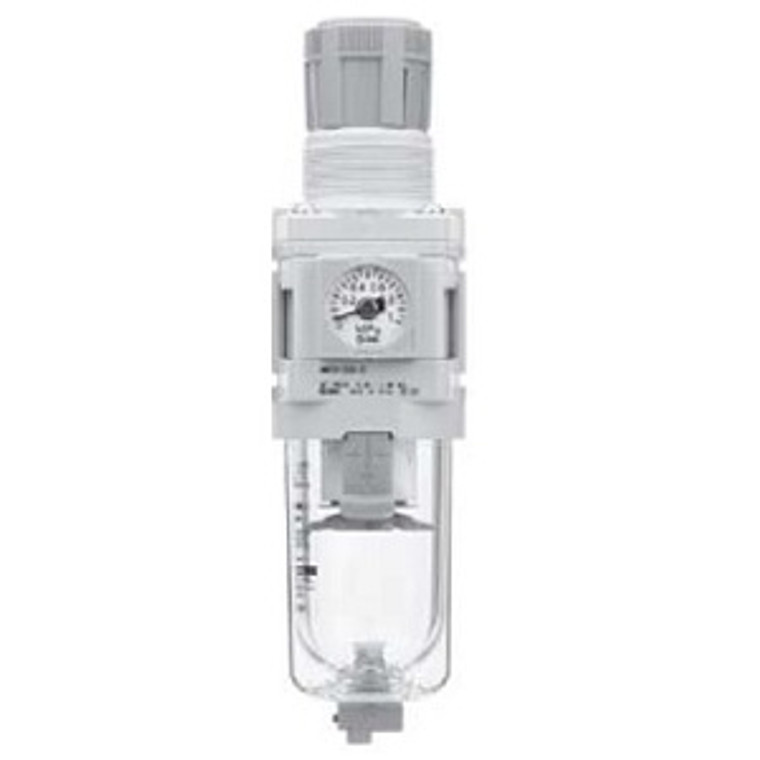

SMC AW20-F02CEH-D AW20(K)-D?AW60(K)-D Series Modular Type Filter Regulator (With Backflow Function Option)

SMC AW20-F02CEH-D AW20(K)-D?AW60(K)-D Series Modular Type Filter Regulator (With Backflow Function Option)

SMC
SKU:
AW20-F02CEH-D
$55.75
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

AW20(K)-D?AW60(K)-D Series Modular Type Filter Regulator (With Backflow Function Option)

  • Integrated filter and regulator units save space and require less piping;
  • Easy to handle; Easy to hold when unlocked;
  • Better visibility & environmental resistance; 2-layer construction: The bowl is covered with a transparent bowl guard!; Better visibility: 360°;
  • Interchangeability is maintained; The mounting pitch for panel mounting is interchangeable between; AR(K) and AR(K)-B, and AW(K) and AW(K)-B.; Brackets and set nuts are common to existing and new products
    • Additional Information
    Body Size:
    20
    With Backflow Function:
    Without Backflow Function
    Pipe Thread Type:
    G
    Port Size:
    1/4
    Bracket:
    Without Bracket
    Float Type Auto Drain:
    N.C.(Normally Closed) Drain Port Is Closed When Pressure Is Not Applied
    Digital Pressure Switch:
    Without Digital Pressure Switch
    Pressure Gauge/Mounting Option:
    Square Embedded Type Pressure Gauge (With Limit Indicator),With Set Nut (For Panel Mount)
    Set Pressure:
    0.05 To 0.85 Mpa Setting
    Bowl:
    Polycarbonate Bowl
    Drain Port Option a:
    With Drain Cock
    Exhaust Mechanism:
    Relieving Type
    Flow Direction:
    Flow Direction:Left To Right
    Drain Port Option b:
    Drain Cock Without Barb Fitting (For ?6 X ?4 Nylon Tube)
    Unit:
    Unit On Product Label:MPa
    Made To Order:
    Standard
